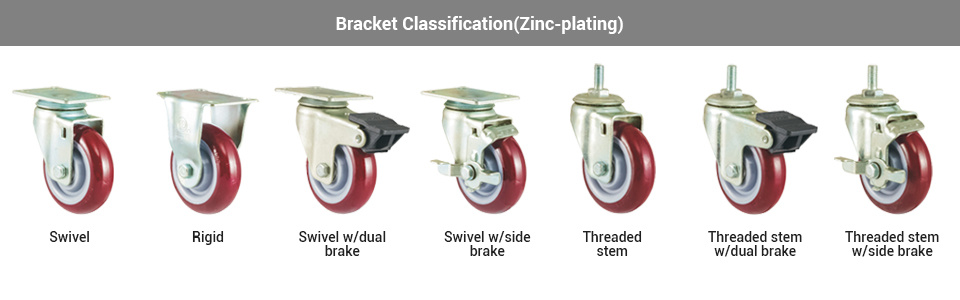

EF1 SERIES – Top plate type – Swivel/Rigid Super polyurethane caster – Zinc Plating
| Number | EB01-41-050S-302 |  |
| Wheel Dia.(D) | 50(mm) | |
| Wheel Width(W) | 22(mm) | |
| Load Capacity | 50(kg) | |

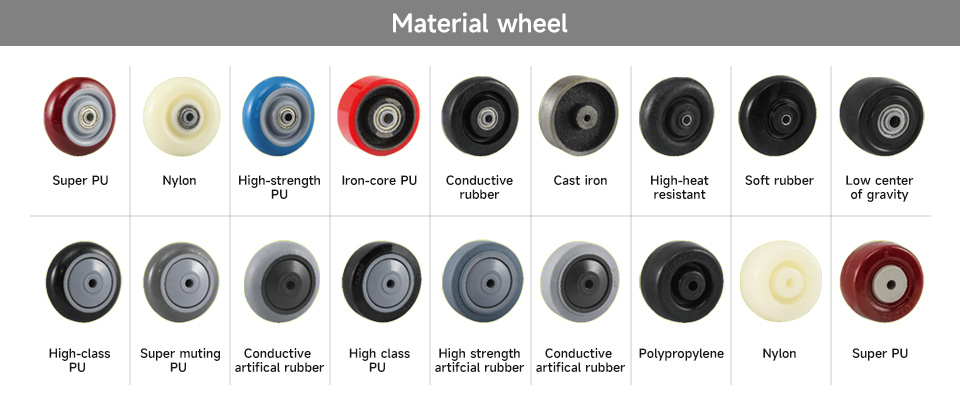

| Material of Wheel | High-class polyurethane | |
| Bearing | Nude | |
| Setting height(H) | 67(mm) | |
| Swivel radius (R) | 48(mm) | |
| Top plate size(a×b) | 58×47(mm) | |
| Hole spacing(e×f) | 46×35(mm) | |
| Hole Dia.(d) | 6.1(mm) | |
| Weight | 0.7(kg) | |
| Quantity | 120pcs/carton |
|
Technical Datas
|
|||||||
| Size | 1½” | 2″ | 2½” | 3″ | 3½” | 4″ | 5″ |
| Wheel Dia.(mm) | 40 | 50 | 65 | 75 | 90 | 100 | 125 |
| Wheel width(mm) | 25 | 28 | 32 | 32 | 32 | 32 | 32 |
| Load capacity(kg) | 50 | 60 | 80 | 100 | 110 | 130 | 140 |
| Bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing | Ball bearing |
| Setting height(mm) | 64 | 78 | 97 | 109 | 121 | 134 | 158 |
| Swivel radius(mm) | 40 | 53 | 69 | 74 | 81 | 86 | 98 |
| Dual brake radius(mm) | 66 | 85 | 113 | 115 | 120 | 120 | 125 |
| Threaded stem size(mm) | 10×15 | 12×20 | 12×25(12×35 ) | 12×25(12×35 ) | 12×25(12×35 ) | 12×25(12×35 ) | 12×25(12×35 ) |
