6 Inch Heavy Duty Swivel Caster – Polyurethane on Iron Core – 1100 lbs
Key Features
-
Extreme Load Capacity：Rated for up to 1100 lbs per caster, providing stable and secure support for heavy-duty industrial equipment and material handling.
-
Rugged Iron Core Construction：The solid cast iron core ensures maximum structural integrity, while advanced bonding technology prevents the polyurethane tread from delaminating under severe stress.
-
Ultimate Floor Protection：The premium PU wheel surface rolls smoothly and quietly, safeguarding expensive epoxy, concrete, and tiled facility floors from scratches and scuff marks.
-
Ergonomic & Easy Maneuverability：Designed to lower starting and rolling resistance. Precision ball bearings and a heavy-duty swivel raceway allow for effortless 360-degree steering, reducing operator fatigue.
-
Harsh Environment Ready：Naturally resistant to most industrial chemicals, oils, greases, and solvents, ensuring a prolonged service life in metalworking shops and automotive plants.
Ideal Applications
-
Heavy-Duty Material Handling Carts & Platform Trucks
-
Automotive Assembly Line Equipment
-
Warehouse Wire Shelving & Stock Carts
-
Industrial Machinery Bases & Die Carts

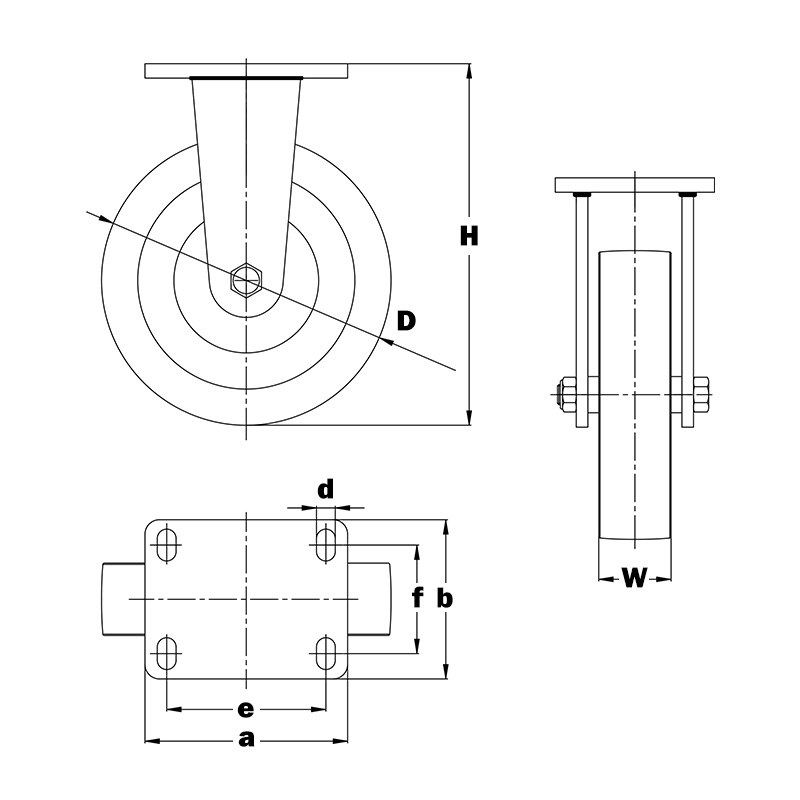

| Number | EK01-17-150S-402 |  |
| Wheel Dia.(D) | 6" (125mm) | |
| Wheel Width(W) | 2" (50mm) | |
| Load Capacity | 1100lbs (500kg) | |
| Material of Wheel | Iron Core Polyurethane (red) | |
| Bearing | Ball bearing | |
| Setting height(H) | 8" (201mm) | |
| Swivel radius(R) | 4 1/3" (113mm) | |
| Top plate size(axb) | 5 1/2" x 4 1/3" (140x110mm) | |
| Hole spacing(exf) | 4 1/3" x 3" (110x75mm) | |
| Hole Dia.(d) | 1/2“ (13mm) | |
| Weight | ||
| Quantity |
|
