8 Inch Heavy Duty Super Toughened Nylon Swivel Caster
Key Features
-
5000 lbs Massive Load Capacity：Rated for an incredible 5000 lbs per caster, providing unyielding and secure support for the most demanding high-capacity industrial equipment and ultra-heavy payloads.
-
Super Toughened Nylon Construction：Features a solid, one-piece premium toughened nylon wheel that offers outstanding resistance to severe impacts, abrasions, and flat-spotting under continuous heavy stress.
-
Exceptional 360° Maneuverability：Engineered with a heavy-duty swivel bracket, reinforced kingpin, and thickened mounting plate, ensuring effortless steering and fluid rotation even under maximum weight.
-
Ultra-Low Rolling Resistance：The exceptionally hard and smooth nylon surface minimizes friction, drastically reducing the push/pull force required by operators to move massive loads across factory floors.
Ideal Applications
-
Ultra-Heavy Material Handling Carts & A-Frames
-
Aerospace & Automotive Manufacturing Platforms
-
Chemical Plants & Corrosive Environment Equipment
-
Heavy Machinery Bases & Mobile Gantries
Why Choose This Caster (Our Advantages)
-
Solves Operator Fatigue： When moving equipment loaded with thousands of pounds, high friction is your biggest enemy. Our super toughened nylon wheels provide minimum rolling resistance, requiring significantly less effort to initiate and maintain movement, keeping your workforce safe and efficient.
-
Unbeatable Chemical Resistance： While rubber or standard polyurethane can degrade, swell, or dissolve when exposed to industrial chemicals, our toughened nylon shrugs off oils, greases, salt, and harsh solvents, making it perfect for tough environments.
-
Zero Delamination Guarantee： Heavy industrial applications often cause multi-layer wheels to peel. Because our wheel is crafted as a single solid block of super toughened nylon, there is absolutely no risk of tread separation—drastically reducing your replacement costs and equipment downtime.

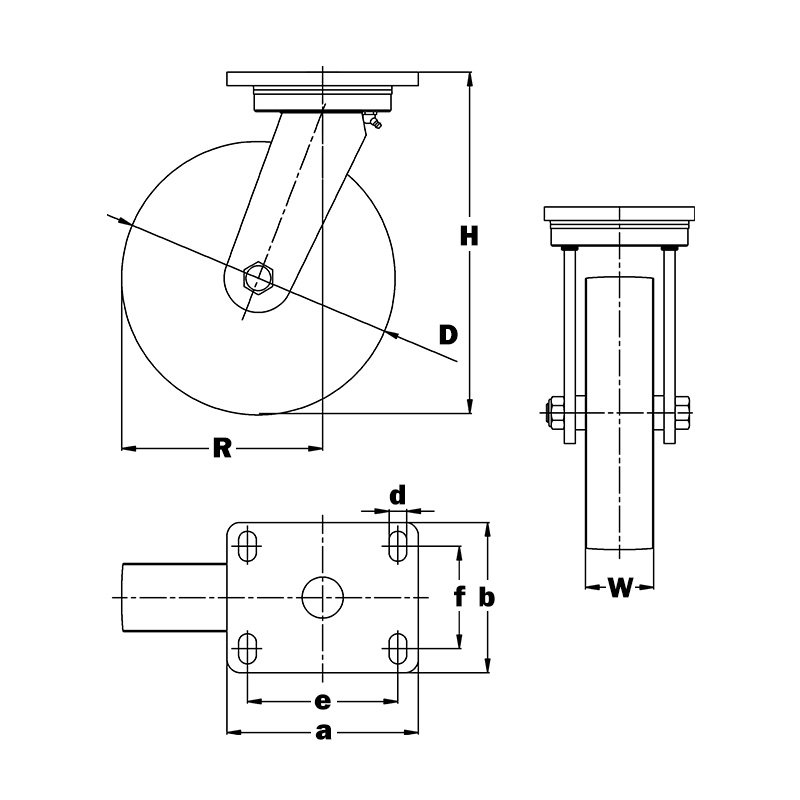

| Number | EK01-17-200s-107 |   |
| Wheel Dia.(D) | 8" (200mm) | |
| Wheel Width(W) | 50mm | |
| Load Capacity | 5500lbs (2500kg) | |
| Material of Wheel | Super Toughened Nylon | |
| Bearing | Ball bearing | |
| Setting height(H) | 250mm | |
| Swivel radius(R) | 150mm | |
| Top plate size(axb) | 140x110mm | |
| Hole spacing(exf) | 110x75mm | |
| Hole Dia.(d) | 13mm |
