5 Inch Medium Duty Nylon Swivel Caster

Key Features

• High-Impact Nylon Tread：Constructed from premium solid white nylon, this wheel delivers exceptional resistance to wear, impacts, and abrasive surfaces, far outperforming standard rubber under medium-duty stress.

• Optimal 5-Inch Clearance：The 5-inch wheel diameter provides a superior center of gravity and excellent rollability, easily overcoming floor debris, thresholds, and uneven gaps that smaller wheels struggle with.

• Chemical & Moisture Resistance：Naturally resistant to water, oils, animal fats, and mild cleaning solvents, making it highly reliable in environments requiring frequent washdowns.

• Precision Double Ball Raceway：The swivel top plate features a hardened double ball bearing raceway, ensuring smooth 360-degree rotation and precise maneuverability even when the cart is fully loaded.

• Low Rolling Resistance：The hard nylon surface minimizes friction on smooth concrete or painted factory floors, significantly reducing the push-pull effort required by operators.

• Corrosion-Resistant Rigging：The medium-duty steel yoke is treated with a bright zinc-plated finish to resist rust and extend the lifespan of the caster assembly.

Ideal Applications

Thanks to its hard-wearing and chemical-resistant nature, this 5" nylon swivel caster is specifically engineered for environments with smooth floors and harsh conditions:

• Food Processing & Meat Packing：Ideal for washdown-ready utility carts, as the nylon wheel will not degrade when exposed to grease or industrial sanitizers.

• Textile & Garment Manufacturing：The smooth, solid wheel surface prevents threads, yarns, and fabrics from snagging or entangling during transit.

• Industrial Warehousing：Perfect for medium-duty material handling carts, platform trucks, and assembly line mobile racks operating on smooth concrete floors.

• Cold Storage Facilities：Nylon maintains its structural integrity and performance in low-temperature environments without cracking.

Why Choose This Caster (Our Advantages)

• Specialized Manufacturing Focus：As a dedicated manufacturer focusing strictly on industrial casters of 2 inches and above, we channel our engineering expertise into developing highly reliable medium-to-heavy-duty mobility solutions.

• B2B Standardized Integration：Designed with standard OEM top-plate dimensions and hole spacing, allowing engineers and procurement managers to easily seamlessly upgrade or replace existing equipment fleets.

• Rigorous Dynamic Testing：Every batch of our medium-duty nylon casters undergoes strict load and obstacle-roll testing to guarantee safety, preventing premature raceway failure under continuous industrial use.

• Global Supply Readiness：From North America and Latin America to Australia and Asia, our robust production capacity ensures consistent quality and on-time delivery for large-scale procurement and distributor stocking.

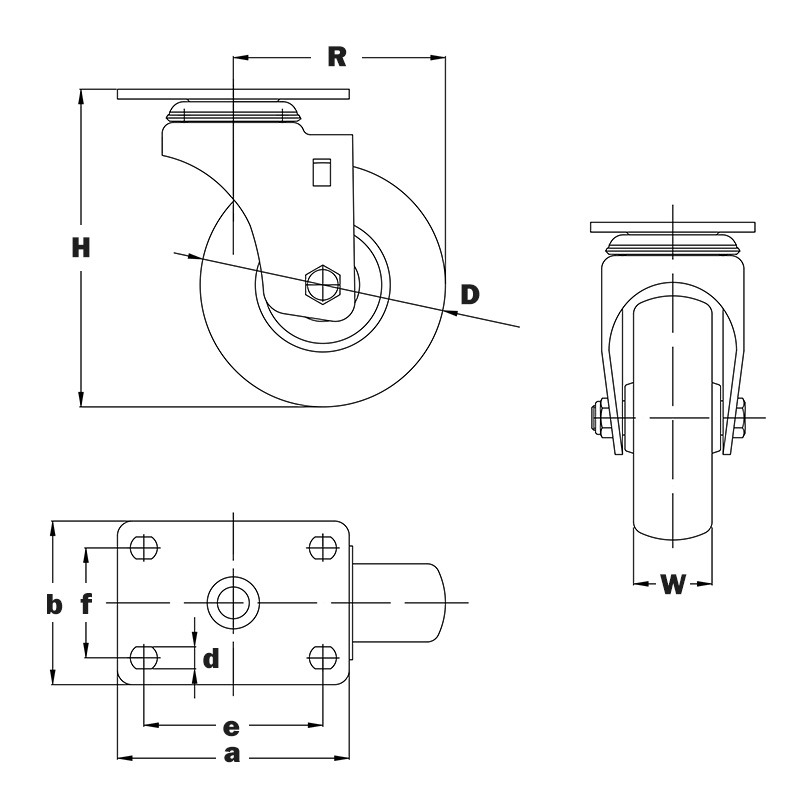

Number	EF01-11-125S-201
Wheel Dia.(D)	5" (127mm)
Wheel Width(W)	32mm
Load Capacity	308lbs (140kg)
Material of Wheel	Nylon
Bearing	Ball bearing
Setting height(H)	156mm
Swivel radius(R)	98mm
Top plate size(axb)	94x67mm
Hole spacing(exf)	73x45mm
Hole Dia.(d)	9mm
